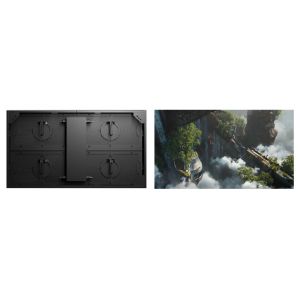

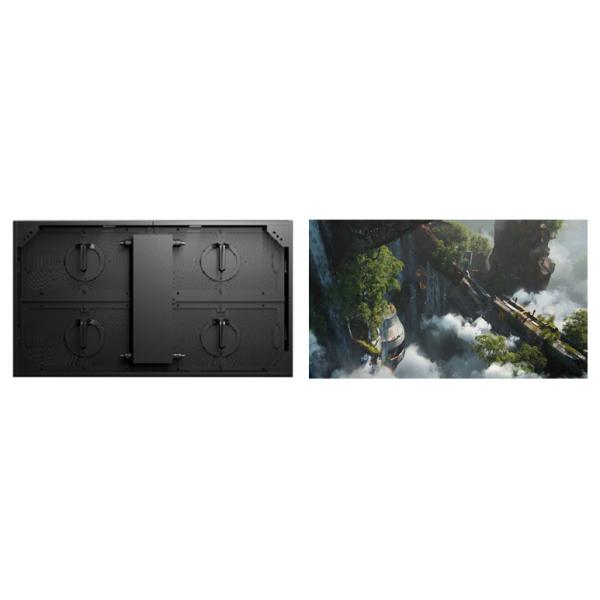

Thin and Light High Brightness P5 Outdoor Fixed LED Display
960*540mm Aluminum Profile
Product Description:
Special cabinet size 960x540mm made of uniquemodule size 480x270mm,
this product will help youstand out of the display crowds.
Features:
- 16:9 Gold ratio:Module size:480*270mm;Cabinet size:960*540mm
- Thin and light:Single cabinet 11.5kg,thickness 58mm
- Module magnet design:Power box can be individually removed.
- Modular design:Front service
- Quick and easy installation
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Pixel Pitch: | 5 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 960×540 mm |
| Module Size: | 480x270 mm |
| Cabinet Weight: | 13kg |
| Cabinet Material: | Aluminum Profile |
| Driving Type: | 1/9 |
| Brightness: | 5500 nits |
| Max/Avg Power: | 720/252 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications and Case:
Sports Arenas and Stadiums
The Outdoor Fixed LED Display Screen is also a popular choice for
sports arenas and stadiums. Its high brightness and wide viewing
angle make it ideal for displaying live sports events and replays.
Its IP65 rating also ensures that the screen can withstand any
weather conditions, making it suitable for outdoor sports venues.
- IP65 Rating: With its IP65 rating, the screen is able to withstand
harsh weather conditions, ensuring uninterrupted display of live
events.
- Wide Viewing Angle: With a horizontal viewing angle of 140° and a
vertical viewing angle of 140°, the screen can be viewed from
multiple angles without any loss of image quality.
Installation:
Installation of Outdoor led display
FAQ:
Q1. How can I place an order?
A1:Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype/email /phone, incase of any delays.
Q2. What kind of display we provide?
We have indoor/outdoor/rental taxi top /mobile LED display/LED
stage/Irregular LED display for you choose.
Q3. Are you manufacturer of LED display. If yes, in which city?
A3:Yes, Our factory with 2000 square meters. And we're in SHENZHEN
city, GUANGDONG Province.
Q4. How long can I get the goods?
A4:Our produce time is about 10-25 working days. When you confirmed
the order, we can start production after receiving your deposit(30%
TT in advance). We will update the production details in time. We
will notice you that we can delivery the goods to you after we get
full payment.
Q5. May I know the package details?
A5:For fixed installation, we use wooden case, usually 2 or 4
cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8
cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
Q6. What is the payment method?
A6:We support a variety of payment methods, the most common is the
TT.
Q7. What's the pixel pitch for Outdoor LED Display Screen?
A7:Outdoor (p3.91mm/p4.81/p5mm/P6mm/ p6.25 /p6.67/
P8mm/P10mm/p16mm/p20mm) LED display screen
Q8. Can it play HD video?
A8:Yes, it can realize HD video function with Linsn/nova
controlling system
Q9. What's the controlling system?
A9Our standard controlling system for this model is Linsn/
Novastar. Also support other controlling system, like Xixun, TF,
Colorlight, etc.
Q10. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3
in 1)?
A10:SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3
LED chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, it reduced grainy of
the screen, and improve the uniform of the screen, this will make
the screen have a more wide viewing angle and smooth image. With
the technology advanced and SMD brightness improved, SMD is more
and more used outdoor.
Q11. What is your terms of delivery?
A11:We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the
one which is the most convenient or cost effective for you.
