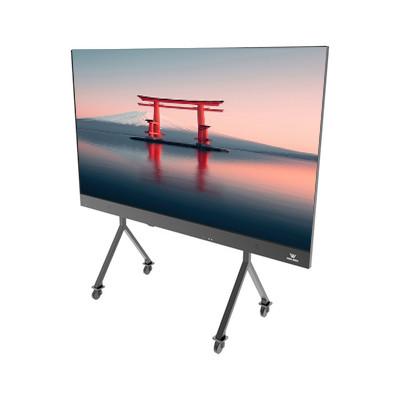

HD Mobile Stand Smart Interactive Conference COB Display with Multi
Platform support
Product Description
This Smart All-in-One Display is designed to elevate your conference room or office environment,
providing high-quality visuals, seamless connectivity, and advanced
features that improve collaboration, productivity, and presentation
experiences.
Product Features
Stunning Visuals & Immersive Display
- Large Screen Sizes: 108", 135", and 162" for different room sizes.
- High Resolution: Up to 2400×1350, ensuring sharp and clear images.
- Wide Viewing Angles: 160° (H) / 140° (V) for an immersive experience.
- High Brightness & Contrast: ≤800 nits brightness & 6000:1 contrast ratio for vivid visuals.
- 16-bit Gray Scale & 3840Hz Refresh Rate for smooth color transitions.
Energy-Efficient & Durable
- Power Consumption: Max 2500W – 6000W, average 800W – 2000W.
- Sturdy Build: Weighs 130KG – 245KG, ideal for long-term use.
Technical Parameters
| Smart All IN One Display |
| Screen Diagonal Length | 108 inch | 135 inch | 162inch | 135inch | 162inch |
Pixel Pitch | 1.25 | 1.56 | 1.875 |
| Module Size | 600mm*337.5mm |
| Module Quantity | 4*4 | 5*5 | 6*6 | 5*5 | 6*6 |
| Screen Size | 2400*1350*30mm | 3000*1687.5*30 | 3600*2025*30 | 3000*1687.5*30 | 3600*2025*30 |
| TV Size | 2450*1495*54 | 3050*1832.5*54 | 3650*2195*54 | 3050*1832.5*54 | 3650*2195*54 |
| Power Voltage | 100——240 V 50/60 HZ |
| Max Power Consumption | ≤2500W | ≤3900W | ≤6000W | ≤2500W | ≤2500W |
| Average Power Consumption | 800——2000W | 1200——2000W | 1800-3000W | 800-2000W | 800-2000W |
| Weight/KG | 130KG(Floor Standing)/ 100KG(Wall Mounted) | 180KG(Floor Standing)/ 130KG(Wall Mounted) | 245KG(Floor Standing)/ 205KG(Wall Mounted) | 178KG(Floor Standing)/ 148KG(Wall Mounted) | 245KG(Floor Standing)/ 205KG(Wall Mounted) |
| Display Raito | 16:9 |
| Resolution | 1920*1080 | 2400*1350 | 2880*1620 | 2000*1125 | 1920*1080 |
| Brightness | ≤800nits |
| Contrast Ratio | ≥6000 :1 |
| Gray Scale | 16Bit |
| Refresh Rate | 3840HZ |
| Viewing Angle | H:160° V:140° |
| Control System | Android 11 or Above |
| CPU | 1.8G 64-bit quad-core processor + Mali G52 GPU + OPS computer
|
| Ram | 2G/4G |
| Memory | 32G |
| System Function | | 1.Support multi-platform terminal wireless projection, including
Windows Mac OS iOS Android system, up to 4 wireless projection
screenss can be displayed at the same time; | | 2.Cooperate with terminal APP to realize wireless screen projection
control; | | 3.Dual WiFi mode, WiFi can be used at the same time | | 4.Internet access and wireless hotspot; | | 5.Support local online high-definition video playback; | | 6.Support image quality effect adjustment; | | 7.Support one-click to open the eye protection mode; | | 8.Supports whiteboard writing and annotation; |
|
| HDMI Input | HDMI 2.0*2 |
| HDMI Ouput | HDMI 2.0*1 |
USB2.0 | USB2.0*1 |
USB3.0 | USB3.0*1 |
RJ45 | RJ45(1000M)*1 |
Installation structure | Floor standing/ Wall mounting |
Accessories | | Remote control*1 | | Wireless screen projector*1 | | Glue Stick Antenna*3 | | External power cord (3 meters)*1 |
|
Optional | | OPS computer (Optional) | | Front maintenance suction tool*1 (optional) | | Installation tool*1 (optional) | | Floor standing*1 (optional) | | Wall mount bracket*1 (optional) | | Infrared frame*1 (optional) |
|
Application
Q&A
What is the Warranty Term and how long is it?
For most product and projdect,we offer 2 years warranty term for
free. If you have any special demand,we could discuss and come out
another term in a fair price.
What about shipment?
By Air,Sea and Railroad,all kinds of way.Buyer's choice,Buyer's
cost.
Can I order a sample order?
Yes!Our minimum order is one.
